3 ways to Boost your CAD to 3D workflow

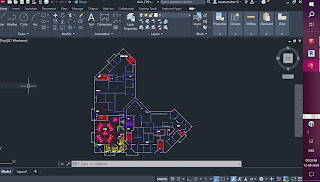

currently designed & working on above layout , draftings

how can a 3d developing a floor plan be ! its amazing

Firstly , when it comes to design / draftings , working drawings , you should know how the layout is made , you should know to read it up at the glance itself , and then starting drafting (as being certified drafter /designer myself )

Having 3 ways to Boost your CAD to 3D workflow

Method 1) Having SketchUp without Cleanup

  • Importing CAD FloorPlan
  • Making Faces without Cleanup
  • Lineup Cleanup

Method 2) Optimizing CAD Files Prior to SketchUp

  • Detailed CAD File Review
  • Freeze/ Purge Non-Importable Items
  • Consolidate Layers
  • Working with Blocks
  • Join/ Close Linework
  • Bind-NCOPY from XREF
  • Making Faces
  • Extruding Multiple Surfaces
  • Bonus: Realtime Optimized Process

Method 3) Using CAD as a Reference Only

  • Tracing Using Native Tools
  • Tracing Using Extensions









 This is amazing , this entire process from 2d to 3d is amazing !!!!!!!
